Algorithms

Where it fits: the loss half of the train step — rollout → reward → advantage → train → sync. In: a track with advantages (supervised / teacher-anchored algorithms opt out via requires_advantages = False). Out: gradients on the model (the optimizer step in ../train consumes them). Full map: ../README.md.

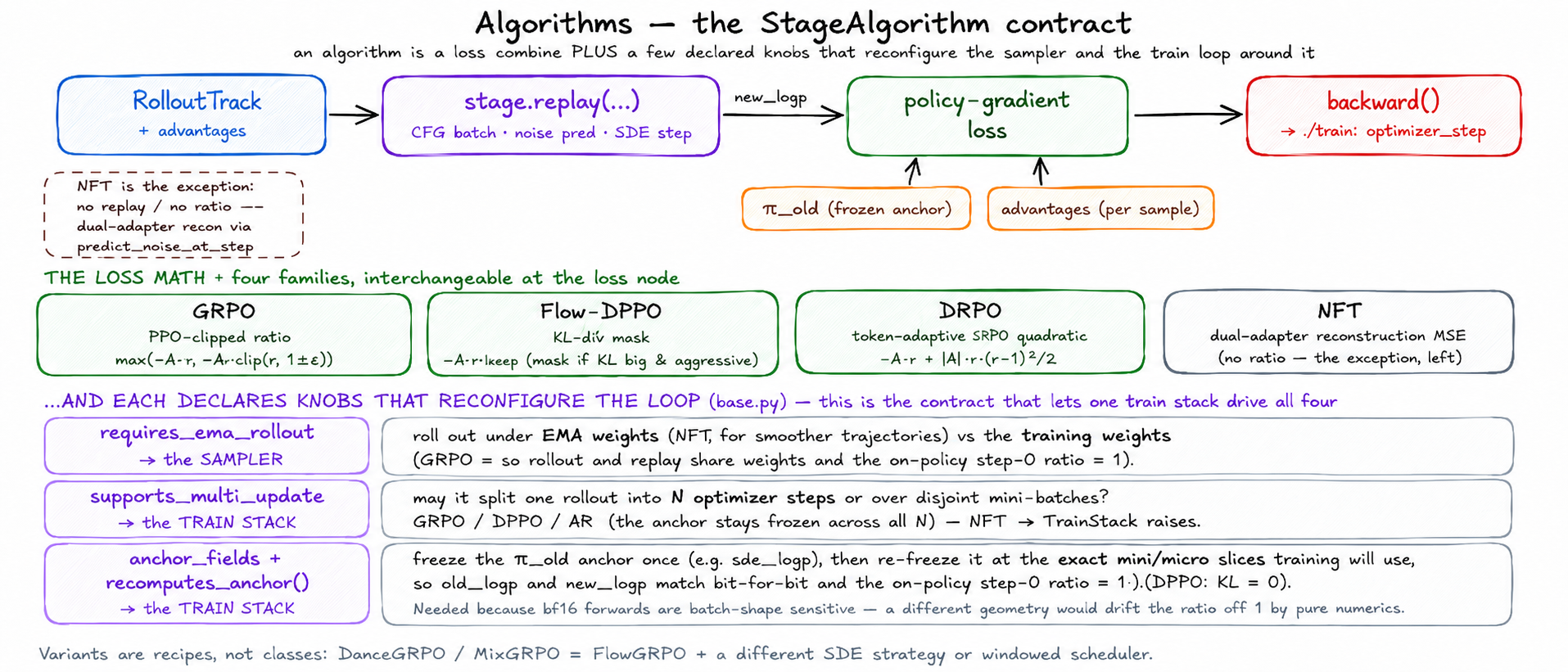

A StageAlgorithm is two things: a loss combine (stage.replay → new_logp, mixed with the frozen π_old anchor and advantages — four interchangeable families) and a few declared knobs (requires_ema_rollout, supports_multi_update, anchor_fields/recomputes_anchor) that reconfigure the sampler and the train loop around it.

What it is

unirl.algorithms is the train-side loss half of the framework. Each algorithm is a StageAlgorithm that takes a rollout track with advantages already attached, replays the stage at the current weights, computes a policy-gradient loss, and calls backward(). It owns the loss math and nothing else — no optimizer, no model, no data.

Why it exists

The four objectives need different things from the rest of the train step, and StageAlgorithm is where that divergence is declared without forking the trainer. Two class attributes drive the surrounding machinery: requires_ema_rollout tells the sampler whether to roll out under EMA weights (DiffusionNFT sets it True; GRPO keeps it False so rollout and replay share weights and the step-1 ratio is exactly 1), and supports_multi_update tells TrainStack whether one rollout may be split into N optimizer steps (it raises if a False algorithm meets num_updates_per_batch > 1). The π_old anchor geometry is not centralized here — the algorithm only declares anchor_fields / recomputes_anchor; TrainStack does the per-slice recompute. So this module keeps four rollout/update contracts selectable at the loss node, not just three-tensor arithmetic.

How it works

• The loop. The trainer builds one algorithm per track and hands it to a TrainStack. Per rollout the stack runs prepare_segment once (freeze the π_old anchor), then num_updates_per_batch optimizer steps over disjoint mini-batches, each a micro-batch loop of compute_loss_and_backward.
• compute_loss_and_backward is pure ratio/quadratic math. It delegates the whole forward — CFG batching, noise prediction, SDE stepping — to stage.replay(...) and gets back new_logp (DiffusionNFT is the exception: it runs its own dual-adapter loop via predict_noise_at_step). The families: GRPO is a PPO-clipped ratio (flowgrpo.py / grpo.py); FlowDPPO masks -A·r by a Gaussian-KL-vs-advantage criterion (flowdppo.py); DiffusionNFT is a dual-adapter reconstruction MSE (diffusionnft.py); DRPO is a token-adaptive SPO quadratic (drpo.py); DiffusionOPD is the teacher-anchored family — a per-step Gaussian KL against frozen teacher LoRA adapters (backend-owned frozen_adapters), distillation rather than RL: it ignores advantages and picks its teacher from the batch's metadata["domain"] (diffusionopd.py).
• The anchor contract — the subtle part. bf16 forwards are batch-shape sensitive, so a π_old anchor computed at a different geometry than new_logp drifts the on-policy ratio off 1 (and FlowDPPO's KL off 0). Algorithms just declare anchor_fields (which segment fields to freeze) and recomputes_anchor (whether prepare_segment replays); TrainStack then recomputes the anchor over the exact same mini/micro slices it will train on. No hardcoded field names.
• Variants are recipes, not classes. DanceGRPO and MixGRPO are FlowGRPO with a different SDE strategy or a windowed index scheduler. Add a class only when the loss math itself changes.

Extending it: a new diffusion loss subclasses StageAlgorithm, calls stage.replay(...), computes a per-element loss, and (loss * loss_scale).backward(); if it needs multi-update, set anchor_fields and supports_multi_update = True and declare recomputes_anchor when prepare_segment must follow the planned micro geometry (see FlowGRPO). A new AR loss mirrors GRPO (early-return on an empty segment, expand advantages per token), keeping supports_multi_update = False.

Gotchas

• old_logp_source: rollout with a replay-only engine — a separate-worker SGLang rollout emits no per-step sde_logp, so the rollout source raises in prepare_segment. Use replay (the cost is one extra torch.no_grad replay).
• num_updates_per_batch > 1 on DiffusionNFT raises in TrainStack.__init__ — DiffusionNFT keeps the default supports_multi_update = False. Multi-update algorithms freeze their declared anchors: FlowGRPO/FlowDPPO prepare sde_logp; GRPO always reuses the rollout log-prob, while DPPO/CPPO/DRPO do so under old_logp_source: rollout and recompute it over the planned training micros under replay.
• FlowDPPO isn't fully on-policy under rollout — it always replays sde_means (KL = 0) but keeps the engine's sde_logp, so its ratio isn't pinned to 1. Use replay to also pin the ratio.
• params must reuse the rollout guidance_scale/eta/shift — single-track recipes bind params: ${sampling}; composed recipes bind the sub-block (e.g. ${sampling.diffusion}). A mismatch silently skews log-probs.
• DiffusionOPD's ODE recipes keep sampling.eta vanishing-but-nonzero (e.g. 1e-6, so stage.replay still emits log-probs) with add_kl_coefficient=false. Never pair a near-zero eta with add_kl_coefficient=true — the KL divides by a transition std that scales with eta (the algorithm raises at init on eta == 0, but cannot judge "too small").
• AR loss_agg_mode is one of token-mean | seq-mean-token-mean | seq-mean-token-sum-norm (unirl.types.loss_agg.LossAggMode; anything else raises at __init__). token-mean is the optimizer step's global token mean and requires sp_size: 1; the seq-mean-* modes average per-sequence values. loss_mask-inactive tokens never enter a denominator, and a fully-masked sequence still counts as one sequence that contributes 0. GSPO is sequence-level and takes no loss_agg_mode. UnifiedModelTrainStack weights micro-batches by sample share only, so its token-mean is not a global token mean.
• AR sampling_temperature must equal the rollout sampling.temperature — ARStage.replay rescales logits by it (log_softmax(logits / T)) to match SGLang's distribution; when unset it silently falls back to the ARSamplingParams default, not the request Sample's actual temperature, biasing every ratio with no raise. Watch rollout_replay_logp_absdiff_mean — it should be ~0 on an on-policy step.
• DiffusionNFT's ref_deviation_coef > 0 anchors to the LoRA-disabled base, not the EMA shadow — the shadow tracks the policy by construction, so anchoring to it would bound no drift. The reference is a third predict_noise_at_step per trained timestep, on top of the trainable and shadow ones; it runs under no_grad and needs no backward (~+24% train phase rather than +50%), and under train_timestep_mode: all it is paid once per timestep in the K-loop. That wall-clock number is not the whole cost — the penalty competes with the reward gradient, so at equal step count a ref_deviation_coef > 0 run settles at a lower proxy reward than a ref_deviation_coef = 0 one; budget steps for that rather than reading the trade off the timing alone. ref_deviation_coef=0 returns a None reference before any of that, so it stays bit-identical to a build without the term.
• ref_prediction_deviation is the raw mean-difference², not the σ-normalized KL — the metric is named for what it measures rather than for ref_deviation_coef, which weighs it: the penalty is ((new_pred - ref_pred)**2).mean(), the same formula as the neighbouring prediction_deviation with the anchor swapped from the EMA shadow to the LoRA-disabled base, so the two share a scale and can be read side by side as drift-from-shadow against drift-from-base. DiffusionNFT trains on a freshly noised xt rather than the rollout trajectory, so it has no stage.replay step indices to hand _transition_sigma. segment.sigmas is present (train_timestep_mode: all requires it) and so is t_batch, so a time weight is available if one is ever wanted; what is absent is the SDE transition std itself, because every NFT recipe runs eta: 0.0 and that std vanishes with eta — the same trap the DiffusionOPD bullet above raises on. That leaves the add_kl_coefficient=false variant minus the /2, so the number is not comparable to FlowGRPO/FlowDPPO's kl_ref_mean, which carries _gaussian_kl_div's /(2σ²). Measuring on the prediction rather than the reconstructed x0 drops the t² Jacobian of xt - t*pred, spreading pressure uniformly over trained timesteps instead of t²-weighting it — the magnitude still moves with t (training lower timesteps raises it several-fold).
• adv_std_saturate is how many advantage σ map to r = 0 or 1 — write C for the value and q = clamp(adv, ±C)/C ∈ [-1, 1] so r = 0.5 + q/2. Then total splits exactly into (C/2)·mean(pos_loss + neg_loss)/β plus (C/2)·mean(q · (pos_loss − neg_loss))/β. Both halves carry the same C/2, so total = policy_loss * adv_std_saturate is a pure gain: it cancels the 1/C inside q and leaves the objective's shape untouched, and the learning rate absorbs it. The /β is a gain as well — the raw NFT gradient scales linearly in β (grad-norm/β is constant over β = 0.05 … 1.0), so dividing by it makes the step β-independent. Raising C shrinks E|q| (0.63 at C=1 versus 0.16 at C=5) and the signal-to-symmetric ratio falls to 0.29x across that range. It is a first-class RL knob, not a safety clip.
• adv_std_saturate: 5.0 de-contrasts ~3.4x against the paper's parameterization — DiffusionNFT (arXiv:2509.16117, Alg. 1) uses r = 0.5 + 0.5·clip(r_norm / Z_c, -1, 1) with Z_c "some normalizing factor, which could take the form of a global reward std", and its loss carries no outer scale. UniRL's advantages already arrive std-normalized (Part.compute_advantages(normalize= True) ⇒ (reward − group_mean)/(group_std + eps)), so adv_std_saturate divides a z-score by another 5 and r spans only [0.066, 0.966] rather than saturating at 0 and 1. Consequence when porting coefficients: the policy term carries an overall adv_std_saturate/β gain that the upstream objective does not — 50x at the H3 recipe's β=0.1, adv_std_saturate=5 — so ref_deviation_coef is not on the same scale as verl-omni's ref_kl_coef. Check that factor before copying a value across. (verl-omni documents its own knob as a "prediction-space reference MSE regularizer", the same reading of the quantity this file takes above.)
• The reference penalty is uninformative while the adapter delta is sub-ULP — both operands come straight out of a bf16 forward, and standard LoRA init (B=0) starts the delta at exactly zero. Below roughly 2 bf16 ULP (RMS delta ≲ 0.01 against O(1) predictions) the difference is mostly quantization noise: measured gradient-direction cosine against the fp32 answer is 0.52 at RMS 1e-3 and 0.97 at 1e-2. At the deviations these runs actually reach (0.008 → 0.057, i.e. 23 → 61 ULP) bf16 costs nothing measurable — 1.00x error, cosine 0.9999 — so the term is sound once the adapter has moved, and merely inert before that. Upcasting inside the penalty does not change this: the operands are already rounded when the forward returns them. DiffusionOPD's fp32 before squaring is not the same situation — it upcasts scheduler-computed prev_sample_means, not raw network output.

Source: unirl/algorithms/README.md — edit the README next to the code, then run npm run sync:readmes from docs/.
